Description

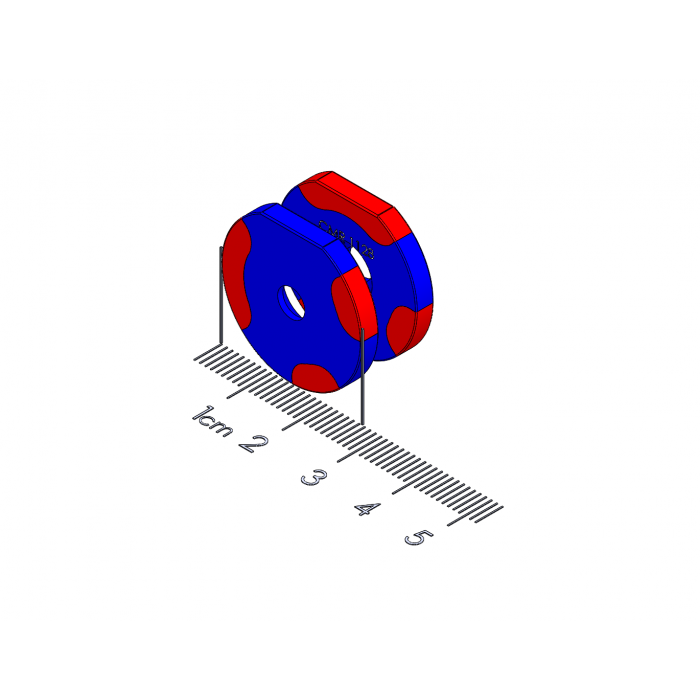

1002300 is a complete set of Polymagnets designed to function as both a twist-release latch. The magnets are D-shaped as an indexing feature for alignment during assembly and to resist the torque created when the magnets are rotated with respect to each other. They also feature a countersink sized for an M4 screw for easy mounting with a minimal design gap.
It contains:
1001128 – Twist-Release w/detent Polymagnet A
1001129 – Twist-Release w/detent Polymagnet B
The Twist-Release Polymagnets with Detent exhibit a high attract force when axially aligned, and a high repel force when rotated 20 degrees in either direction, forming a twist-release mechanism. The detent function keeps the pair in the spring (or release) position until explicitly rotated back to the latch position.
