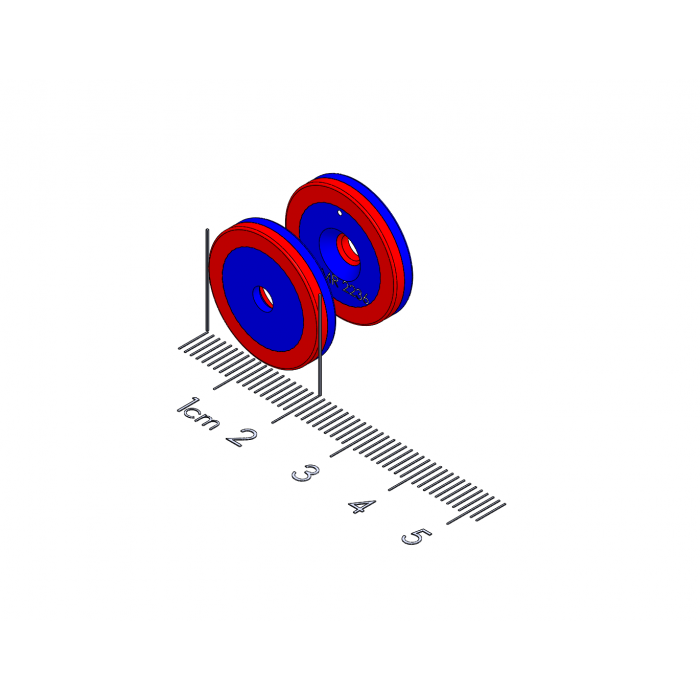

1002307 – Center Alignment Polymagnet pair, Long Range, #6 CTSK, 0.75″ Diameter

Description

1002307 is a complete set of Polymagnets designed for centering alignment. It is optimized for large magnet-to-magnet gaps, in excess of 1.5 mm. It contains:

• 1002236 – Center Alignment Polymagnet A
• 1002237 – Center Alignment Polymagnet B

This Polymagnet provides a high holding force in magnet-to-magnet and magnet-to-steel applications, at design gaps greater than 0.75 mm. It also provides radial shear resistance in magnet-to-magnet applications.
